| Lugar de origem: | CN |
|---|---|
| Marca: | Xinda |
| Certificação: | CE,BV,SGS,ISO9001 |
| Número do modelo: | CPD25 |
| Quantidade de ordem mínima: | 1 UNIDADE |
| Preço: | ＄11,500.00-＄15,000.00/unit |
| Detalhes da embalagem: | pacote do nude |
| Tempo de entrega: | 25-30 dias |
| Termos de pagamento: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Habilidade da fonte: | 4.000 unidades/ano |
| Cores: | vermelho, amarelo, azul, verde, branco, etc. | Souce do poder: | Eletrodomésticos |
|---|---|---|---|
| transmissão: | Automático | Largura da forquilha: | 125mm |
| Dimensões globais: | 2098*2353*1170 mm | Altura de levantamento mínima: | 3000mm |
| Comprimento da forquilha: | 1070mm | Altura de levantamento do máximo: | 6000mm |
| Centro da carga: | 500 mm | Capacidade de carga: | 2500kgs |
| Sistema de movimentação: | AC/DC | Garantia: | 1 ano ou 2000 horas |
| Realçar: | industrial forklift truck,warehouse stand up forklift |
||

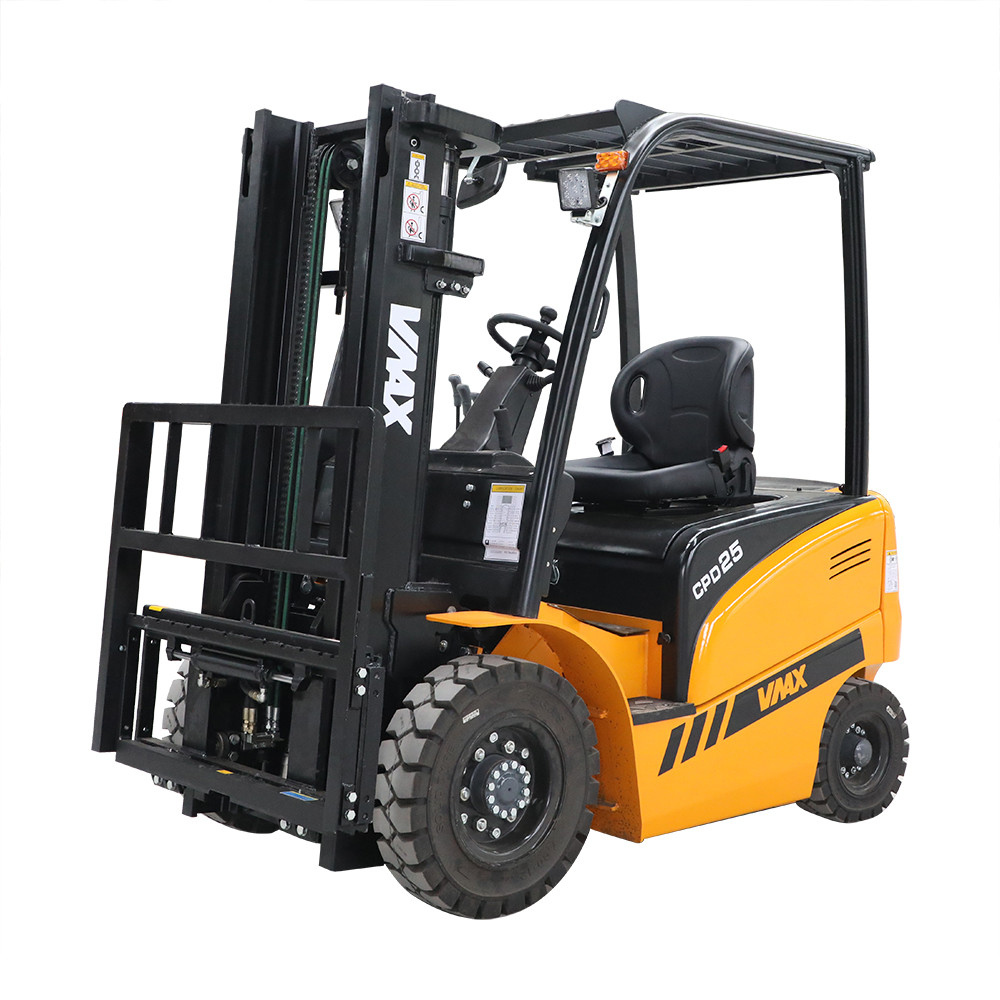

Xinda brand Electric forklift 2.5T with Curtis controller from USA
LIFT Brand 2.5ton battery powered electric AC drive motor electric forklift price CPD25 BATTERY FORKlift,5000lb electric forklift 2Tons Battery Powered Forklift/Batteries For Electric Forklift,Cheap 1.5ton Warehouse Electric Mini Forklift Electric Small Forklift for Sale With Battery Low Price electric forklift
American Curtis controller 2.5 ton electric forklift/battery forklift Four wheel drive forklifts, small electric forklift with SME/ZAPI/Curtis/GE electronic controller,2.5ton forklift truck
| Main Information | |||
| 1.1 | Brand | Xinda | |
| 1.2 | Model | CPD25 | |
| 1.4 | Operation type | Drive in seat | |
| 1.5 | Load capacity | kg | 2500 |
| 1.6 | Load center | mm | 500 |
| 2.1 | Weight with battery | kg | 4270 |
| Tire,chassis | |||
| 3.1 | Tire Type,Driving wheel/Load wheel | pneumatic tyre | |
| 3.2 | Number of wheels X=driving wheel(front/behind) | 2X /2 | |
| 3.3 | Tire size (front/behind) | ||
| 3.4 | Service brake | Hydraumatic pedal | |
| 3.5 | Parking service | Mechanical manual | |
| Size | |||
| 4.1 | Mast tilt,Forward/backward |
α/β(°) | 6/12 |
| 4.2 | Mast height after mast fall |
mm | 1995 |
| 4.3 | Fork lift max height | mm | 4045 |
| 4.4 | Free lift height | mm | 150 |
| 4.5 | Standard Mast height | mm | 3000 |
| 4.6 | Overhead guard height | mm | 2098 |
| 4.7 | Overall length | mm | 2353 |
| 4.8 | Fork overhang | mm | 468.5 |
| 4.9 | From the rear | mm | 384 |
| 4.10 | Wheelbase | mm | 1500 |
| 4.11 | Minimum distance between the ground | mm | 110 |
| 4.12 | Tread (front/behind) | mm | 970/950 |
| 4.13 | Vehicle width | mm | 1170 |
| 4.14 | Fork size | mm | 1070x125x45 |
| 4.15 | Channel width, |
mm | 4040 |
| 4.16 | Turning radius | mm | 2172 |
| Performance | |||
| 5.1 | Walking speed,loaded/withoutload |
km/h | 12/14 |
| 5.2 | lifting speed,loaded/load | m/s | 320/450 |
| 5.3 | Dropping speed loaded/without load |
m/s | 476/426 |
| 5.4 | Maximum traction,loaded |
N | 18000 |
| 5.5 | Max grade ability,loaded/without load |
% | 13/15 |
| Drive | |||
| 6.1 | Drive motor power | kw | 11 |
| 6.2 | Drive motor power | kw | 12 |
| 6.4 | Level voltage/Capacitance | V/Ah | 48/560 |
| Others | |||
| 7.1 | Drive System | DC/AC | |
| 7.2 | Electrical control system | Curtis from America | |
Details:
Q: Are you trading company or manufacturer ?
A: Xinda was founded in 2010, is a professional production and sales of forklift manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity and model.
Q: Do you provide samples ?
A: Yes, Xinda accept the sample order.
Q: What is your terms of payment ?
A: T/T and L/C is accepted.
